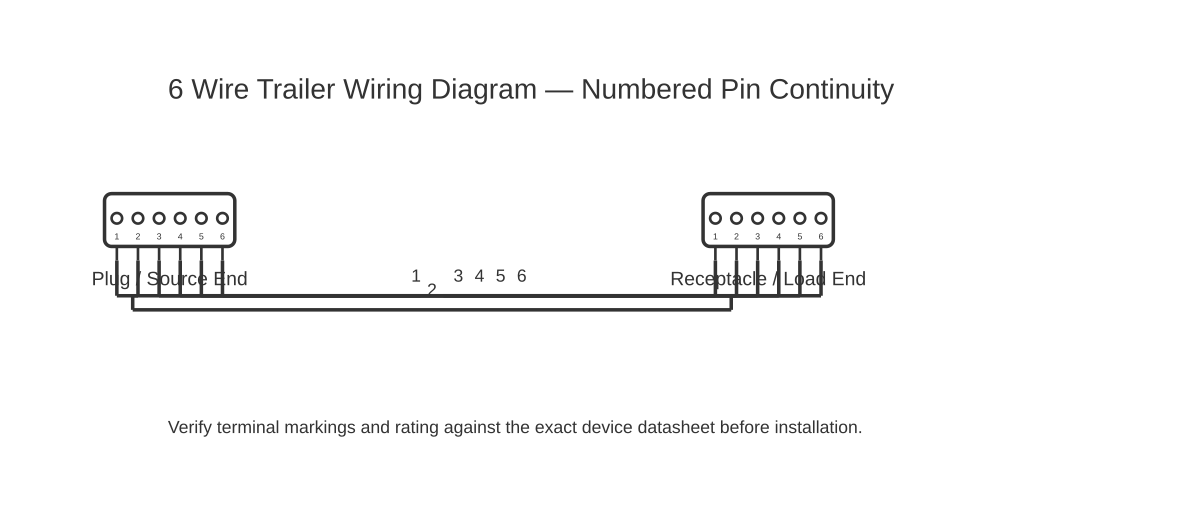

6-Wire Trailer Wiring Diagram
This is a free printable 6 wire trailer wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
A complete reference for 6-wire trailer connectors covering colour codes, pin functions, brake controller wiring, and safe installation for trailers with electric brakes.
A 6-wire trailer connector extends the standard 4-way flat connector by adding two extra circuits: one for electric trailer brakes and one for a 12-volt auxiliary power feed. This makes it the minimum connector type required for trailers fitted with electric braking systems, such as boat trailers, horse floats, and heavier utility trailers.
The six circuits in a typical 6-pin round or 6-way flat connector are: left turn and brake signal, right turn and brake signal, tail/running lights, ground return, electric brake output, and 12-volt auxiliary power. The ground wire is the most safety-critical because a high-resistance ground causes erratic brake behaviour and flickering lights.
In North American wiring practice the colour conventions commonly used are: white for ground (chassis/frame bond), brown for tail/running lights, yellow for left turn and brake, green for right turn and brake, blue for electric brake controller output, and black for the 12-volt battery feed. European and Australian trailers may follow different colour conventions, so always verify against the manufacturer's wiring diagram rather than colour alone.
The electric brake wire (typically blue) runs from the tow vehicle's brake controller to each brake magnet on the trailer axle. The controller modulates voltage to the magnets in proportion to tow-vehicle deceleration, which is measured by either a pendulum accelerometer or a solid-state accelerometer inside the controller. Incorrect connection of this wire to the tail-light circuit instead of the brake controller output is one of the most common wiring errors, resulting in brakes that lock permanently during reversing or release entirely when braking.
The 12-volt auxiliary circuit (typically black) allows the trailer battery or a refrigerator to charge while travelling. A 20-amp in-line fuse close to the tow-vehicle battery is mandatory on this circuit. Leaving it unfused is a fire risk.
Before any connection, verify trailer frame ground continuity with a multimeter from the trailer coupler to each light housing. Resistance above 0.5 ohm indicates a corroded bond that will cause chronic lighting faults.
How to wire 6 wire trailer wiring diagram
- Identify the connector type and pin layout Determine whether the trailer uses a 6-way flat, 6-pin round, or another format. Obtain the manufacturer's pin-out diagram — do not rely on colour codes alone. Label each wire at the trailer socket before disconnecting anything.
- Test and clean the ground circuit Connect one multimeter probe to a known clean chassis ground on the tow vehicle and the other to the ground pin of the trailer socket. Resistance must be below 0.3 ohm. Clean or replace any corroded ring terminals and ensure the ground wire bonds directly to bare metal at both the connector and the trailer frame.
- Connect tail/running lights (brown) Splice into the tow-vehicle tail-light circuit. Turn on the running lights and verify voltage at the brown wire with the circuit live. Check that all trailer marker and running lights illuminate at full brightness.
- Connect turn and brake signals (yellow left, green right) Splice into the respective indicator/brake-light circuits. Activate each turn signal in turn and verify correct lamp operation on the trailer. Inspect for any bulbs illuminating on the opposite side, which indicates a ground fault.
- Connect the electric brake output (blue) Route the blue wire to the output terminal of the brake controller, not to any lighting circuit. With the controller powered and the trailer plugged in, apply gentle brake pressure and confirm the controller display shows brake output. Measure voltage on the blue wire — it should vary between 0 V and approximately 12 V in proportion to deceleration demand.
- Connect the auxiliary 12-volt feed (black) with inline fuse Install a 20-amp automotive blade fuse within 300 mm of the tow-vehicle battery on the black wire. Connect to a switched or always-on 12-volt source as appropriate for the trailer's use. If used for battery charging, an always-on source is preferred so the trailer battery charges even at rest.
- Perform a complete pre-departure lamp and brake test With the trailer connected, activate each function: running lights, left indicator, right indicator, brake lights, hazard flashers. Then perform a low-speed brake test at 10 km/h to confirm electric brakes engage smoothly without locking. Adjust brake controller gain if brakes are too aggressive or too soft.
Specifications
| Operating voltage | 12 V DC (automotive) |
|---|---|
| Brake output current (typical) | 0–4 A per brake magnet, controller-modulated |
| Auxiliary circuit maximum current | 20 A (fuse-limited) |
| Ground circuit maximum resistance | < 0.3 ohm (trailer plug to trailer frame) |
| Minimum wire cross-section — lighting circuits | 1.0 mm² |
| Minimum wire cross-section — brake and auxiliary circuits | 2.5 mm² |
| Minimum wire cross-section — ground return | 4.0 mm² |
| Connector ingress protection | IP54 minimum recommended for road use |
Safety warnings
- Electric trailer brakes are a safety-critical system. Incorrect wiring can result in total brake failure or wheel lock-up at highway speed. Always verify brake function at low speed in a controlled environment before towing on public roads.
- Disconnect the tow-vehicle battery negative terminal before working on the trailer harness to prevent accidental short circuits that can cause fire or personal injury.
- The auxiliary 12-volt circuit must be fused within 300 mm of the battery. An unfused high-current feed is a fire hazard in the event of a harness chafe or trailer wiring fault.
- Trailer wiring regulations vary by jurisdiction. Ensure your installation complies with the applicable vehicle standards in your country or state before operating on public roads.
- Never rely on paint or plated metal surfaces for ground continuity. Always bond ground wires to clean, bare metal using ring terminals and star washers.
Tools needed
- Digital multimeter
- Automotive wire stripper/crimper
- Heat gun (for heat-shrink terminals)
- Flat-blade and Phillips screwdrivers
- Drill with metal bits (for ground bonding holes if required)
- Cable ties and mounting clips
- Electrical contact cleaner spray
- Test light or LED circuit tester
Common mistakes
- Connecting the blue brake wire to the stop-light circuit instead of the brake controller output — causes constant or no brake engagement.
- Using the trailer frame paint as a ground return path instead of a dedicated bonded wire — causes dim or intermittent lights.
- Omitting the inline fuse on the auxiliary 12-volt circuit — creates an unprotected high-current path that can cause fire.
- Using undersized wire for the ground circuit — voltage drop on the return path causes all circuits to malfunction simultaneously.
- Relying on colour codes alone without verifying the connector pin-out — colour standards differ between manufacturers and countries.
- Failing to test brake function before towing — brake faults may not be apparent until emergency braking is required.
Troubleshooting
- All trailer lights inoperative
- Cause: Open or high-resistance ground circuit Fix: Measure resistance from trailer ground pin to trailer frame. Clean or replace the ground wire and re-bond to bare metal. Resistance should be below 0.3 ohm.
- Electric brakes do not engage
- Cause: Blue wire disconnected, blown fuse on brake controller, or brake controller not configured Fix: Check for voltage on the blue wire at the trailer plug during braking. Verify brake controller fuse and power supply. Confirm controller is calibrated and gain is set above minimum.
- Brake lights illuminate when turn signal is activated
- Cause: Shared stop/turn circuits with a ground fault creating cross-feed Fix: Inspect all ground connections at trailer light housings. A corroded or floating ground forces current to return through adjacent circuits. Clean and re-bond each housing ground.
- Auxiliary 12-volt circuit blows fuse repeatedly
- Cause: Short circuit in trailer wiring or trailer battery reversed polarity Fix: Disconnect the trailer battery. Check for pinched or chafed wiring with a continuity test between the black wire and frame ground. Verify trailer battery polarity before reconnecting.
- One running light is bright, adjacent light is dim
- Cause: Poor ground at the dim light housing causing current to return through the other lamp filament Fix: Remove the dim light housing, clean the ground terminal, and ensure the ground wire bonds to clean bare metal on the trailer frame.
Frequently asked questions
What is the difference between a 6-pin round and a 6-way flat trailer connector?
They carry identical circuits but use different physical formats. The 6-pin round connector is more common on heavy trailers and horse floats and provides a weather-resistant bayonet lock. The 6-way flat connector is a wider version of the 4-way flat and suits lighter utility trailers. Pin assignments vary between manufacturers, so always cross-reference the trailer's own wiring diagram.
Why do my trailer brakes lock on or release completely when I plug in a 6-wire connector?
This almost always means the blue brake-controller wire has been connected to the wrong circuit — either the tail-light feed (locks brakes permanently) or the stop-light circuit (releases brakes when you brake). Disconnect the blue wire, confirm it reads 0 V with brakes off and a modulated voltage when the brake controller activates, then reconnect only to the correct terminal.
Does the 12-volt auxiliary circuit need a fuse at the trailer?
Yes. A fuse or circuit breaker is required at both ends: one close to the tow-vehicle battery (to protect the harness) and one at the trailer battery (to protect the trailer's internal wiring). Without trailer-side protection a dead short anywhere in the trailer can overheat the harness back to the tow vehicle.
Can I connect a 6-wire trailer to a 7-pin tow-vehicle connector?
Yes, using an adapter. A 7-way RV-style blade connector carries all six circuits plus a reverse/backup light circuit. A 6-to-7 adapter leaves the seventh pin unconnected. Ensure the adapter's ground pin mates correctly — mismatched adapters are a common source of ground faults.
What causes trailer lights to glow dimly even when switched off?
Dim back-feed is nearly always a high-resistance or missing ground. Current finds an alternative return path through other light circuits, causing cross-illumination. Measure resistance between the trailer ground pin and the trailer frame. Values above a few tenths of an ohm indicate a corroded ground connection that must be cleaned and re-bonded.
