How to Wire Factory amp wiring diagram

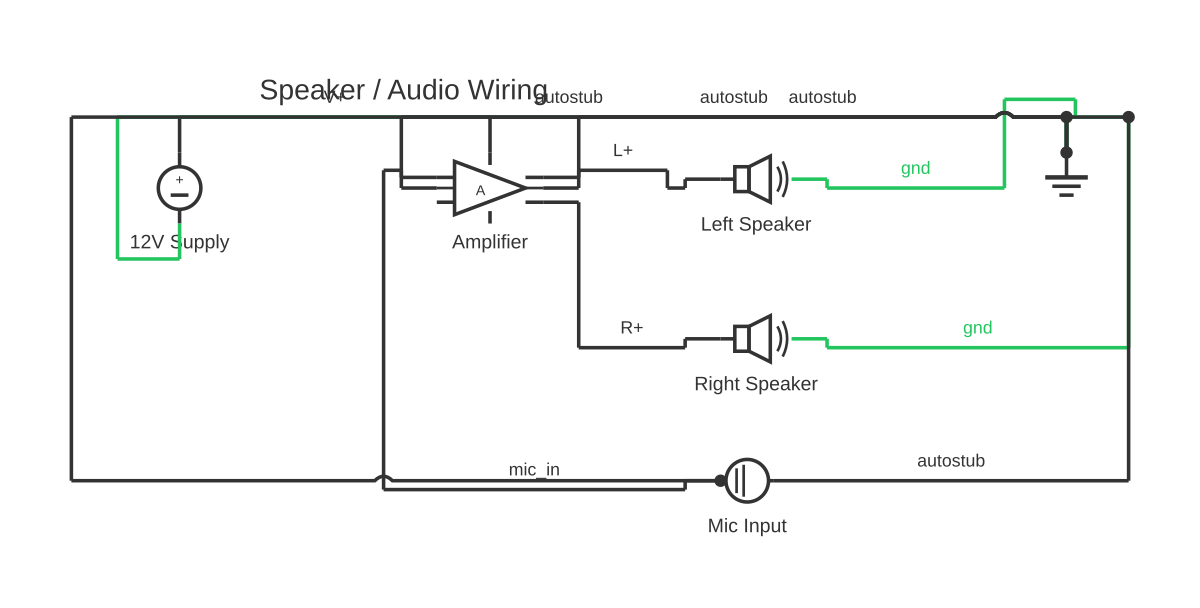

This is a free printable factory amp wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
This comprehensive guide provides detailed wiring instructions and specifications for factory amp wiring diagram systems.
Understanding Factory amp wiring diagram requires knowledge of electrical principles and component specifications. Proper installation ensures reliable operation and prevents equipment damage. Each component must be sized for appropriate voltage and current. Protection devices prevent overcurrent and fault damage. Grounding establishes safe voltage reference throughout the system. Signal isolation prevents noise interference with control circuits. Thermal management maintains safe operating temperatures. Maintenance verifies continued reliable operation. Professional installation ensures code compliance and safety.
Many modern vehicles use a factory-amplified audio system where the head unit outputs a low-level signal rather than speaker-level power; the OEM amp, often hidden under a seat or in the trunk, drives the speakers. Installing an aftermarket amplifier in such a system requires either tapping speaker-level outputs from the factory amp and using a line output converter (LOC) to produce RCA-level signals, or finding the pre-amp RCA outputs if the head unit has them. Signal timing, gain structure, and turn-on trigger wiring are the main challenges. Mapping the factory amp wiring harness and the new amp's connections in the free browser-based diagram editor helps avoid ground loops and ensures the remote turn-on wire is correctly sourced.
How to wire factory amp wiring diagram
- Review all specifications and electrical code requirements
- Gather materials, tools, and safety equipment
- Disconnect all power and verify de-energization
- Install components according to manufacturer specifications
- Make connections using proper techniques and materials
- Verify safe operation before energizing
Frequently asked questions
What are the critical installation parameters?
Component sizing, protective device rating, proper grounding, and verification testing before energization.
How do I verify correct installation?
Test continuity, verify voltages, check ground integrity, and measure load response using appropriate test equipment.
What safety precautions must I follow?
Turn off power before work, use proper safety equipment, follow electrical codes, and never work on energized circuits.
What maintenance is needed?
Annual inspections, connection cleaning and tightening, and protective device testing.
When should I hire a professional?
For complex installations, code compliance issues, or equipment failures requiring specialized expertise.
How do you install an aftermarket amp when your car has a factory radio and factory amp?
When adding an aftermarket amplifier to a factory radio and OEM amp system, the cleanest approach is to install a line output converter (LOC) at the factory amp's speaker outputs to convert speaker-level signal to RCA-level; connect those RCA cables to the new amp's inputs and set the amp's gain to match. Run a dedicated power cable (fused within 18 inches of the battery) directly to the amp's power terminal, ground the amp to a bare metal chassis point within 18 inches, and source the remote turn-on wire from the factory amp's switched 12 V output or the radio harness accessory wire. Avoid tapping high-impedance DSP outputs directly, as impedance mismatches cause audible distortion.
