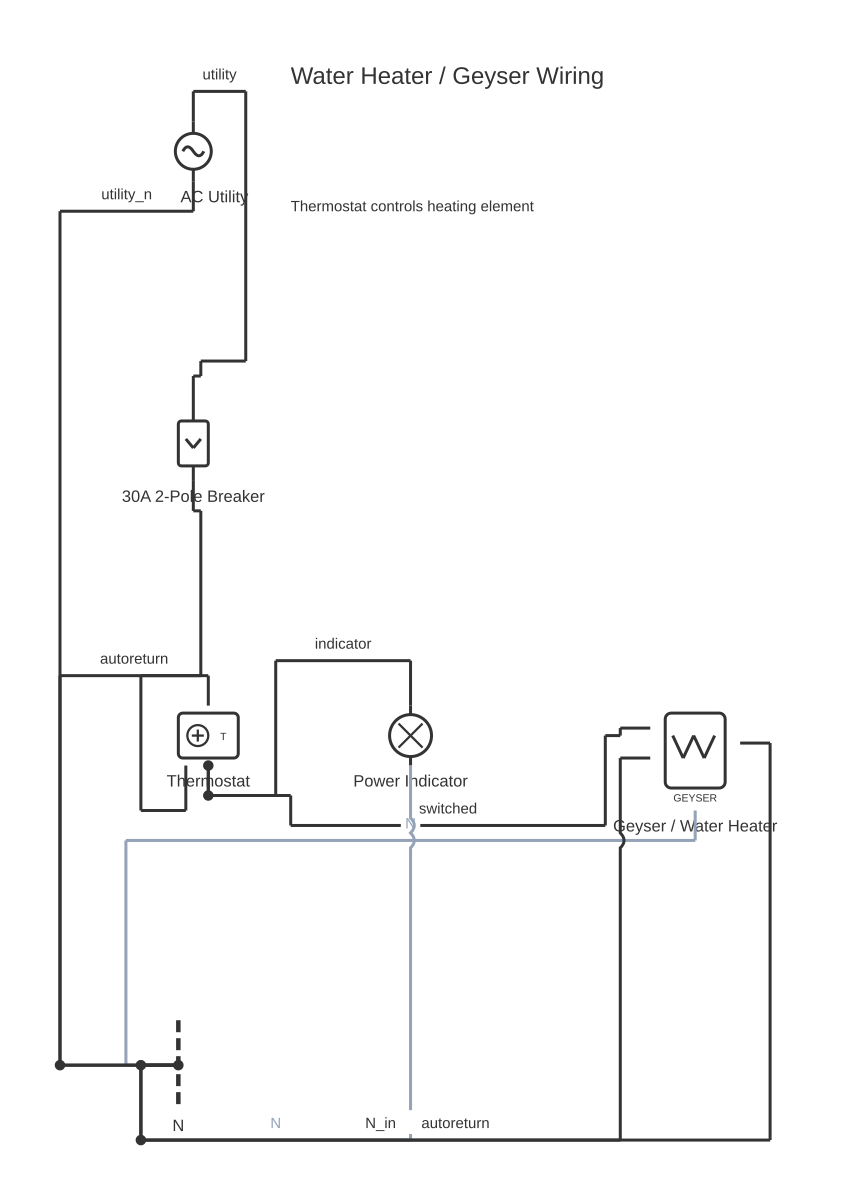

How to Wire Heater diagram
This is a free printable heater diagram: download the diagram as SVG or open it and print to paper or PDF.
This comprehensive guide provides detailed instructions for proper heater diagram installation, including wiring procedures, component selection, and safety considerations.
Electric heater wiring diagrams show how heating elements connect to thermostats and power sources. Understanding these diagrams is essential for heater installation and troubleshooting. The diagram shows resistance heating elements that convert electrical energy directly to heat. Thermostats switch power on and off maintaining desired temperature. The diagram shows how thermostats interrupt and restore power as needed. Multi-stage thermostats may control multiple heating elements for variable output. The diagram shows proper grounding and overcurrent protection. Safety cutouts prevent fire from thermostat failure. The diagram shows adequate ventilation allowing proper heat distribution. Proper wire gauge ensures safe power delivery without excessive heat in conductors. Thermal fuses prevent overheat conditions when thermostats fail. The diagram shows proper element spacing preventing hot spots.
Motor space heaters are resistive heating elements mounted inside electric motors to prevent condensation when the motor is stopped, and their wiring diagram is a straightforward addition to the main motor circuit. The heater is powered from a separate low-wattage supply — often 110 V or 240 V AC — with its circuit interlocked so the heater is energised when the motor is off and de-energised when the motor runs. Understanding this interlock arrangement is the key difference between a motor space heater diagram and a standard resistance heater diagram.
How to wire heater diagram
- Review the complete wiring diagram and understand all connections before beginning installation
- Gather all required materials, tools, and safety equipment according to the diagram specifications
- Turn off and lock out all power sources to ensure safe working conditions
- Follow the diagram sequence connecting components using proper wire gauge and terminal types
- Verify all connections match the diagram before applying power to the system
Frequently asked questions
What is the proper wire gauge for this circuit?
Wire gauge depends on current requirements and wire run distance. Consult the wiring diagram and electrical code for specific requirements.
How important is proper grounding?
Proper grounding is critical for safety and electrical performance. It provides fault current paths and prevents shock hazards.
What protection devices are required?
Circuit breakers and fuses protect circuits from overload and short circuits. Specifications depend on system voltage and current.
Can I modify the wiring diagram?
Modifications should follow the original design principles and electrical code requirements. Consult qualified professionals for complex changes.
What maintenance does this system require?
Regular inspection, connection cleaning, and testing verify safe operation. Follow manufacturer recommendations for specific procedures.
How does a motor space heater wiring diagram work?
A motor space heater wiring diagram shows a small resistive element (typically 30–150 W) connected to an AC supply inside the motor's terminal box or frame. The heater circuit is interlocked with the motor starter: a normally-closed auxiliary contact on the contactor closes when the motor is stopped, energising the heater, and opens when the motor starts to prevent overheating. The heater terminals are usually separate from the main motor winding terminals and are labelled H1 and H2 (or EH1/EH2) on the motor nameplate. Always confirm the heater's rated voltage matches the supply used.
