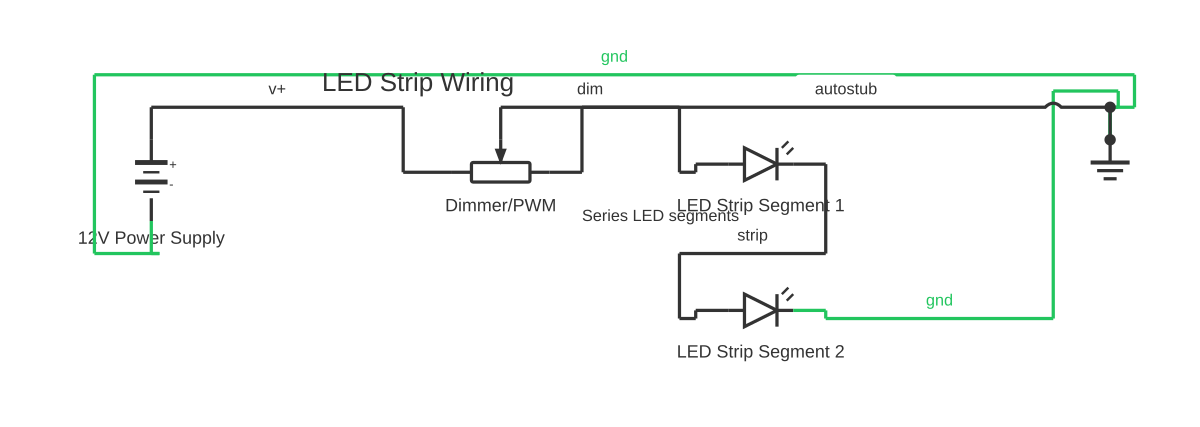

An LED strip circuit diagram shows how to wire LED strip lighting using a low-voltage power supply. This diagram includes the power supply, dimmer controls, and proper wiring connections.

LED strip circuits operate on low-voltage DC power, typically 12V or 24V from a dedicated power supply unit. The diagram shows how AC power from the wall outlet connects to a power supply that converts AC to regulated DC voltage. Single-color LED strips have only two connection points: positive and negative. The power supply positive wire connects directly to the positive rail of the LED strip, and the negative wire connects to the negative rail. RGB (multi-color) strips have four connection points: positive, red, green, and blue. Instead of connecting positive and negative directly, RGB strips require PWM (pulse-width-modulation) control modules that switch each color channel on and off rapidly to achieve any desired color. The diagram shows how a dimmer or controller inserts between the power supply and the LED strip to control brightness or color. For long LED strip runs exceeding 16 feet, additional power injection points prevent voltage drop and ensure even brightness across the entire strip. The diagram also shows how to properly calculate power requirements: total wattage equals the LED strip wattage per meter multiplied by total meters plus the power supply overhead.

How to wire led strip circuit diagram

Measure the total length needed for your LED strip installation.
Calculate the power supply wattage needed: (strip watts per meter × length) × 1.2.
Select a 12V or 24V power supply with sufficient wattage and DC voltage output.
Clean and prepare the installation surface where the LED strip will mount.
Remove the adhesive backing from the LED strip and apply it in the desired location.
Connect the power supply positive (red) wire to the LED strip positive pad.
Connect the power supply negative (black) wire to the LED strip negative pad.
If using a dimmer or controller, insert it between the power supply and LED strip.

Frequently asked questions

What size power supply do I need for my LED strip?

Calculate total watts: LED strip watts per meter × total meters + 20% safety margin. A 60 LED/meter strip at 5W per meter needs 5W × length(m) × 1.2. Always round up to the next standard size.

Can I connect multiple LED strips in series?

Strips can be connected end-to-end using connector wires, but length is limited by voltage drop. For runs over 16 feet, add power injection wires at the far end to maintain voltage.

What's the difference between 12V and 24V LED strips?

Both work the same way but 24V strips allow longer runs with less voltage drop. 24V is better for commercial applications, while 12V is common for residential use.

How do I make my LED strips dimmable?

Use a PWM dimmer controller between the power supply and LED strip. Single-color strips need one dimmer, RGB strips need a dedicated RGB controller.

Can I cut LED strips to a specific length?

Yes, most LED strips have cut lines marked every few LEDs. Only cut on the marked lines to avoid damaging the solder pads. Solder wires to the new end or use connector pads.
