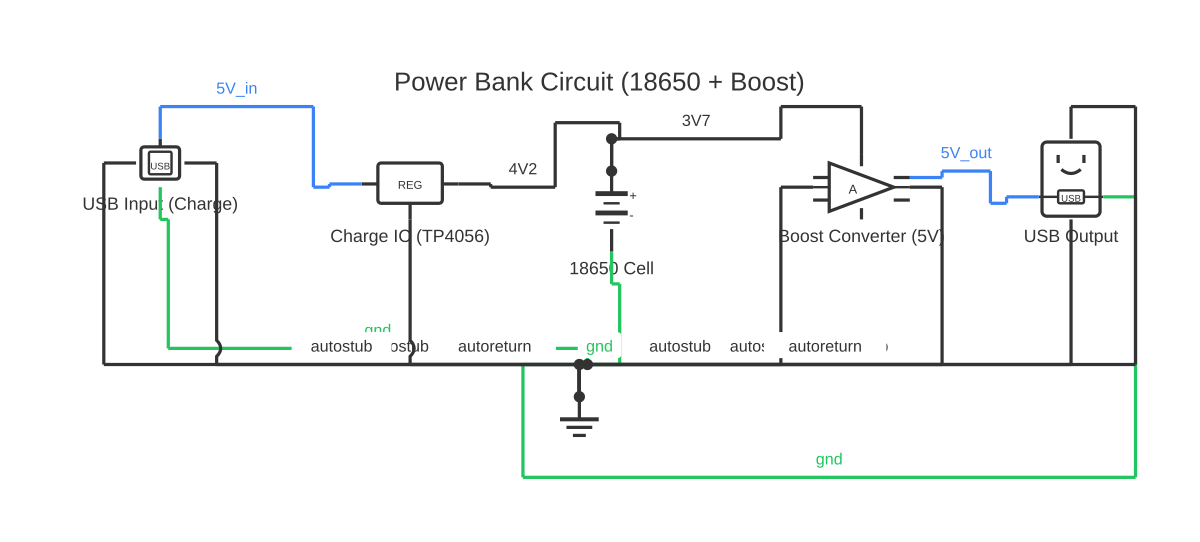

This editable power bank circuit diagram reference is generated from the displayed electrical graph, not from a generic article outline. The current drawing contains 6 components and 14 routed connections, including 1 × USB Input (Charge) (Usb Connector), 1 × Charge IC (TP4056) (Voltage Regulator), 1 × 18650 Cell (Battery), 1 × Boost Converter (5V) (Amplifier Block) and 1 × USB Output (Usb Outlet). Use it to inspect the shown topology, then confirm ratings and terminal assignments against the equipment documentation for your installation.

Diagram checks and scope

Components: 6
Wired connections: 14
Automated check: Automated pin, route, source, and topology checks passed; this is not a safety certification.

What this Power Bank Circuit Diagram drawing contains. The rendered example uses 1 × USB Input (Charge) (Usb Connector), 1 × Charge IC (TP4056) (Voltage Regulator), 1 × 18650 Cell (Battery), 1 × Boost Converter (5V) (Amplifier Block), 1 × USB Output (Usb Outlet) and 1 × circuit reference. Connector diagrams are orientation-sensitive: a mating-face view, wire-entry view and mirrored receptacle view can assign the same position differently. The component names in the list below come from the editable canvas, while the wire summary comes from the saved start and end terminals. This makes the written explanation auditable against the image instead of presenting an unrelated stock circuit.

Reading the stored graph from terminal to terminal gives this sequence: 1. USB Input (Charge) vbus terminal connects to Charge IC (TP4056) in terminal on the 5V_in net. 2. Charge IC (TP4056) out terminal connects to 18650 Cell pos terminal on the 4V2 net. 3. 18650 Cell pos terminal connects to Boost Converter (5V) vcc terminal on the 3V7 net. 4. Boost Converter (5V) out1 terminal connects to USB Output vbus terminal on the 5V_out net. 5. USB Input (Charge) gnd terminal connects to circuit reference gnd terminal on the gnd net. 6. 18650 Cell neg terminal connects to circuit reference gnd terminal on the gnd net. 7. USB Output gnd terminal connects to circuit reference gnd terminal on the gnd net. 8. USB Input (Charge) dp terminal connects to circuit reference gnd terminal on the autostub net. 9. USB Input (Charge) dm terminal connects to circuit reference gnd terminal on the autostub net. 10. Charge IC (TP4056) gnd terminal connects to circuit reference gnd terminal on the autoreturn net. 11. Boost Converter (5V) in terminal connects to circuit reference gnd terminal on the autostub net. 12. Boost Converter (5V) out terminal connects to circuit reference gnd terminal on the autostub net. Its named nets are “5V_in”, “4V2”, “3V7”, “5V_out”, “gnd”, “autostub” and “autoreturn”. A line joining two terminals records electrical continuity in this reference; visual proximity alone does not create a connection. Junctions, bridges and terminal labels therefore matter when the drawing is edited or exported.

Trace by terminal identifier and function, not by apparent left-to-right position. Shield, chassis and signal returns are separate concepts unless the governing connector documentation explicitly bonds them. In this particular graph, the first visible path is USB Input (Charge) vbus terminal connects to Charge IC (TP4056) in terminal on the 5V_in net., Charge IC (TP4056) out terminal connects to 18650 Cell pos terminal on the 4V2 net., 18650 Cell pos terminal connects to Boost Converter (5V) vcc terminal on the 3V7 net. and Boost Converter (5V) out1 terminal connects to USB Output vbus terminal on the 5V_out net.. Follow the remaining rows in the connection table before changing a symbol or moving a conductor, because a neat layout is not evidence that a terminal function is correct.

Confirm connector gender, viewing side, keying, revision and every signal assignment against the applicable standard or manufacturer drawing. Perform continuity and short checks on an unpowered cable before connection. Automated validation checks that component IDs and terminal IDs exist, routes terminate on pins, the graph has a recognized source, and the saved topology has no blocking structural fault. It does not determine conductor size, protective-device rating, fault current, insulation class, environmental suitability or compliance with local rules. Those decisions require project values and the current primary documentation.

How to wire power bank circuit diagram

Read the Power Bank Circuit Diagram source path For this power bank circuit diagram, begin at USB Input (Charge) (Usb Connector) and trace every stored terminal pair toward the load or output; do not infer continuity from lines that merely cross.
Match every terminal name Compare the Power Bank Circuit Diagram terminal labels shown in the connection table with the current device or standard documentation before assigning real conductors.
Set project-specific ratings Replace placeholder values in the power bank circuit diagram with verified voltage, current, protection, conductor and environmental data for the actual installation.
Run the electrical checks again After editing Charge IC (TP4056) (Voltage Regulator) or any route, validate the graph and inspect every reported open terminal, source fault, collision and disconnected island.
Release a controlled copy Export the revised Power Bank Circuit Diagram drawing only after a competent reviewer has compared it with the bill of materials, manufacturer documents and applicable rules.

Specifications

Topic	Power Bank Circuit Diagram
Components shown	6
Routed connections	14
Named nets	5V_in, 4V2, 3V7, 5V_out, gnd, autostub, autoreturn
Verification scope	Stored pins, routes, source path and graph topology

Safety warnings

Disconnect both cable ends before continuity testing.
Never apply a pin assignment from this reference to an exact connector until its orientation and primary documentation are confirmed.

Tools needed

The current manufacturer datasheet, connector schedule or applicable standard for every real device
A suitable meter and proving method for the voltage class being worked on
The editor validation report and a controlled terminal or wire schedule

Common mistakes

Treating the power bank circuit diagram illustration as proof of a manufacturer pinout or conductor rating when those values are not encoded in the graph.
Connecting by component position or wire colour instead of checking the named terminals in the Power Bank Circuit Diagram connection path.
Mirroring the mating face or transferring a colour code between connector standards without verifying terminal numbers.

Troubleshooting

The Power Bank Circuit Diagram path appears open: Cause: A route ends on the wrong pin, a terminal was renamed, or a required return path is absent. Fix: Trace the connection rows in order, restore the documented terminal mapping, and run validation again.
The edited drawing passes visually but validation fails: Cause: A conductor may stop off-pin, cross a component body, create a source short or leave a disconnected island. Fix: Open each blocking finding, correct the referenced component or route, then re-run the topology check before export.
The real equipment behaves differently: Cause: The stored reference does not match the exact model, revision, supply or contact state. Fix: De-energize safely, return to the current primary documentation, and revise the symbol terminals and values before further testing.

Frequently asked questions

What exactly is verified on this power bank circuit diagram?

The saved Power Bank Circuit Diagram graph is checked for known components and terminals, pin-snapped routes, a recognizable source path and blocking topology defects. Exact equipment ratings and manufacturer assignments are outside that automated scope.

Which components are actually shown in this Power Bank Circuit Diagram diagram?

The current editable graph contains 1 × USB Input (Charge) (Usb Connector), 1 × Charge IC (TP4056) (Voltage Regulator), 1 × 18650 Cell (Battery), 1 × Boost Converter (5V) (Amplifier Block), 1 × USB Output (Usb Outlet) and 1 × circuit reference. The bill of materials on this page is derived from those saved symbols rather than a generic shopping list.

How are the power bank circuit diagram connections documented?

The graph contains 14 terminal-to-terminal links. The first path shown is USB Input (Charge) vbus terminal connects to Charge IC (TP4056) in terminal on the 5V_in net.

Can I use the drawing as an installation instruction?

Use it as an editable reference and review aid. Verify the exact equipment documentation, ratings, protection, conductor selection and local requirements before construction or release.

Sources and verification

Review status: Not independently reviewed. Automated topology checks confirm stored terminals and routes, not the correctness of manufacturer pin assignments, ratings, regional codes, or installation decisions. Verify those claims against the current primary documentation before use.
