Three phase wiring diagram: Complete Wiring Reference

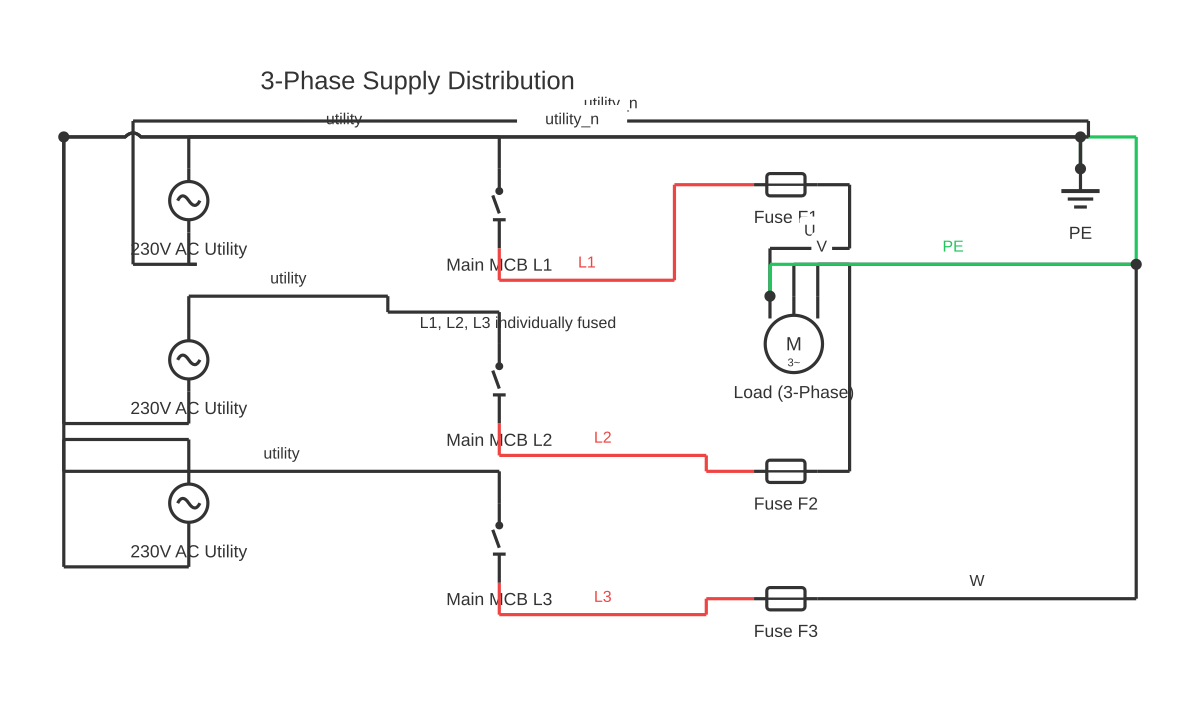

Three phase wiring diagram: Complete Wiring Reference — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable three phase wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

Understanding three phase wiring diagram is essential for proper electrical system installation and operation. This guide provides detailed instructions for safe wiring.

The three phase wiring diagram system requires proper component selection, appropriate wire gauging, and correct connection methods. Installation follows standard electrical practices: de-energize before work, use appropriate protection devices, ensure reliable ground connections, and test all circuits before operation. Proper wire gauge selection prevents voltage drop and overheating. Protection devices must match wire ampacity, not load requirements. Grounding provides safe fault current paths. Common failures result from inadequate protection, poor connections, or undersized conductors. Professional installation includes measuring run distances, selecting color-coded wires, and verifying operation under full load. Component quality matters—cheap connectors cause intermittent failures. Regular maintenance and visual inspection confirm continued safe operation. Thermal management through proper ventilation prevents overheating and extends equipment lifespan.

Three-phase power is typically reserved for commercial and industrial premises, but a three phase house wiring diagram is relevant where domestic properties have high-demand loads such as electric vehicle chargers, large HVAC systems, electric boilers, or workshop machinery. In a three-phase domestic installation, each phase supplies a dedicated set of single-phase circuits in the distribution board, balanced as evenly as possible across the three phases to minimise neutral current. Colour codes vary by region: in the UK and Australia brown/black/grey (new harmonised) replaces the older red/yellow/blue, while older installations may still use those colours. Diagram your three-phase layout for free at Circuit Diagram Maker.

How to wire three phase wiring diagram

Review the complete wiring diagram and gather all required components matching your application and local codes.
Prepare wiring: measure lengths, strip insulation carefully, and prepare terminal connections with appropriate crimpers.
Install components securely with proper orientation and adequate ventilation clearance.
Make connections following the diagram exactly, using color-coded wires and rated terminals.
Test and verify: confirm continuity, polarity, and voltage; operate under load and verify all functions work.

Frequently asked questions

What are the key safety rules for electrical installation?

Always de-energize circuits before working. Use lockout/tagout procedures. Wear insulated tools and PPE. Test for voltage presence before touching. Follow manufacturer specs and local codes. Never work alone on high-voltage systems.

How do I determine proper wire gauge?

Wire gauge depends on circuit current and run length. Higher current requires thicker wire. Use ampacity tables from NEC codes. For runs over 100 feet, increase gauge by one or two steps to compensate for voltage drop.

What fuse or breaker rating should I use?

Breaker rating must match the circuit wire gauge, never the load. Undersized breakers cause nuisance trips; oversized creates fire hazards. Always follow application manual specifications exactly.

Why is grounding so critical?

Grounding provides safe return paths for fault currents, allowing protection devices to detect shorts quickly. It prevents dangerous voltages on exposed metal and reduces electrical noise. Never compromise grounding.

What tools do I need?

Wire strippers, crimpers, multimeter, screwdrivers, insulated pliers, and torque wrenches for high-current connections. Always use quality, insulated tools for safety.

What does a three phase house wiring diagram look like?

A three-phase house wiring diagram shows the three live conductors (L1, L2, L3), neutral, and protective earth entering the main isolator and distribution board. Inside the board, each phase feeds a set of MCBs or RCBOs protecting the branch circuits, with loads spread across the three phases to keep the system balanced. Single-phase loads (lights, standard outlets) connect between one live and neutral, while any three-phase loads (e.g. a three-phase EV charger or motor) connect across all three phases. The diagram should also show the RCD arrangement, main earthing terminal, and meter tails from the supply.
