Wiring two way light switch: Complete Wiring Reference

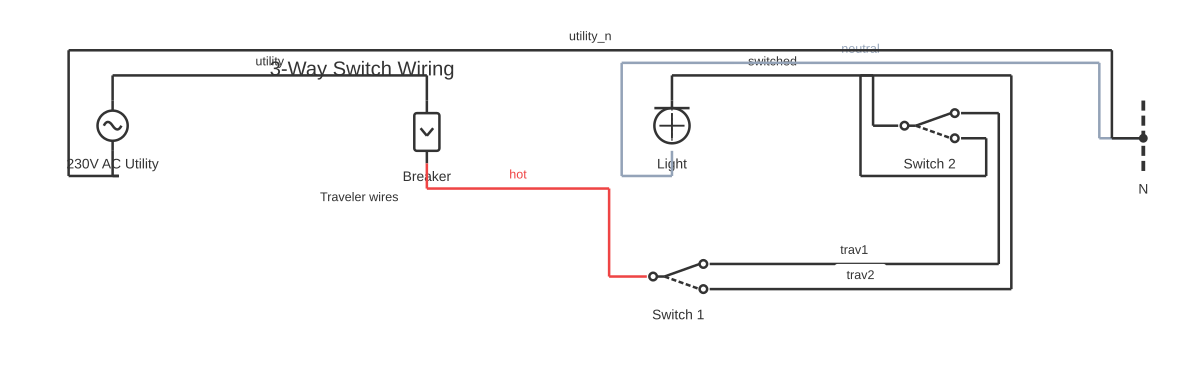

Wiring two way light switch: Complete Wiring Reference — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable wiring two way light switch: download the diagram as SVG or open it and print to paper or PDF.

Understanding wiring two way light switch is essential for proper electrical system installation and operation. This guide provides detailed instructions for safe wiring.

The wiring two way light switch system requires proper component selection, appropriate wire gauging, and correct connection methods. Installation follows standard electrical practices: de-energize before work, use appropriate protection devices, ensure reliable ground connections, and test all circuits before operation. Proper wire gauge selection prevents voltage drop and overheating. Protection devices must match wire ampacity, not load requirements. Grounding provides safe fault current paths. Common failures result from inadequate protection, poor connections, or undersized conductors. Professional installation includes measuring run distances, selecting color-coded wires, and verifying operation under full load. Component quality matters—cheap connectors cause intermittent failures. Regular maintenance and visual inspection confirm continued safe operation. Thermal management through proper ventilation prevents overheating and extends equipment lifespan.

Two-way switch wiring allows a single light (or group of lights) to be controlled independently from two separate locations—most commonly at the top and bottom of a staircase or at each end of a corridor. The arrangement requires two traveller wires linking the two switch positions, plus the permanent live and switched live conductors. Regional conventions differ: Australia uses active/neutral colour codes and slightly different terminal labelling from the UK, while motorcycle two-way switching uses entirely different wiring methods. The free diagram editor at circuitdiagrammaker.com supports all these variants.

How to wire wiring two way light switch

Review the complete wiring diagram and gather all required components matching your application and local codes.
Prepare wiring: measure lengths, strip insulation carefully, and prepare terminal connections with appropriate crimpers.
Install components securely with proper orientation and adequate ventilation clearance.
Make connections following the diagram exactly, using color-coded wires and rated terminals.
Test and verify: confirm continuity, polarity, and voltage; operate under load and verify all functions work.

Frequently asked questions

What are the key safety rules for electrical installation?

Always de-energize circuits before working. Use lockout/tagout procedures. Wear insulated tools and PPE. Test for voltage presence before touching. Follow manufacturer specs and local codes. Never work alone on high-voltage systems.

How do I determine proper wire gauge?

Wire gauge depends on circuit current and run length. Higher current requires thicker wire. Use ampacity tables from NEC codes. For runs over 100 feet, increase gauge by one or two steps to compensate for voltage drop.

What fuse or breaker rating should I use?

Breaker rating must match the circuit wire gauge, never the load. Undersized breakers cause nuisance trips; oversized creates fire hazards. Always follow application manual specifications exactly.

Why is grounding so critical?

Grounding provides safe return paths for fault currents, allowing protection devices to detect shorts quickly. It prevents dangerous voltages on exposed metal and reduces electrical noise. Never compromise grounding.

What tools do I need?

Wire strippers, crimpers, multimeter, screwdrivers, insulated pliers, and torque wrenches for high-current connections. Always use quality, insulated tools for safety.

How do you wire a two-way light switch in Australia?

In Australia (AS/NZS 3000), a two-way switch uses an active (red or brown) supply into the COM terminal of the first switch, two strappers (traveller wires) connecting the L1 and L2 terminals of both switches together, and a switched active from the COM terminal of the second switch to the light fitting. The neutral runs directly to the fitting from the supply. Post-2018 installs use brown for active and blue for neutral, but older red/black wiring is still common in existing buildings.

How do you wire a two-way electrical light switch?

A two-way light switch requires three conductors between the two switches: a common, and two travellers. The live supply connects to the COM terminal of switch 1; the two traveller wires link the L1 of switch 1 to L1 of switch 2, and L2 of switch 1 to L2 of switch 2; finally, a switched live exits the COM of switch 2 to the lamp. In the UK, a 3-core-and-earth cable (brown COM, grey and black travellers) is the standard method.

How do you wire a two-way light switch on a motorcycle?

Motorcycle two-way switching (e.g. a light controllable from the handlebars and from a remote position) is achieved using a standard SPDT (single-pole double-throw) toggle or rocker switch at each location, with a 12 V positive supply to the COM of the first switch, traveller wires linking both switches, and the switched positive from the second switch's COM feeding the lamp through a suitable fuse. The lamp's negative returns to chassis ground. Unlike mains two-way wiring, all conductors carry 12 V DC and wire gauge must suit the lamp current.
