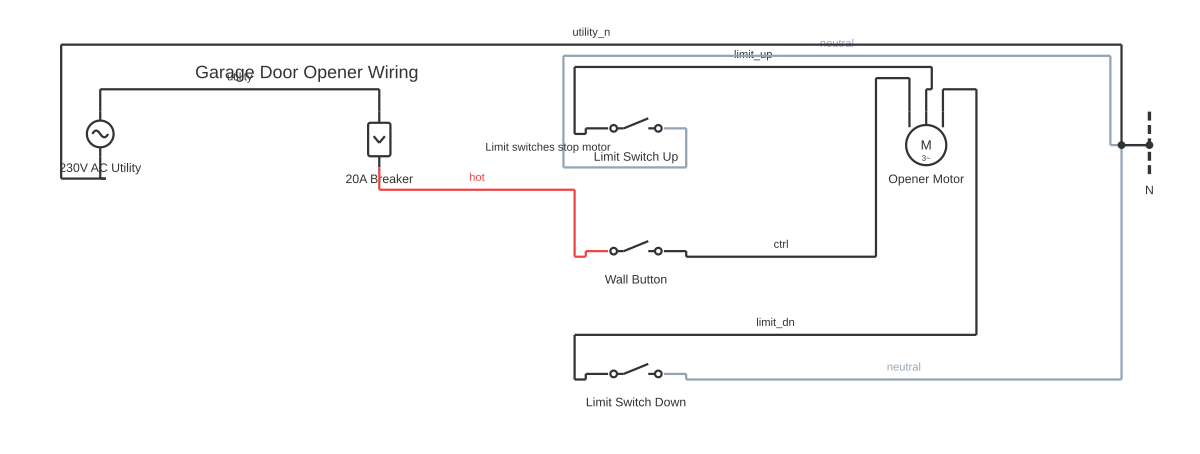

Garage wiring diagram: Complete Wiring Reference

Garage wiring diagram: Complete Wiring Reference — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable garage wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

Understanding garage wiring diagram is essential for proper electrical system installation and operation. This guide provides detailed instructions for safe wiring.

The garage wiring diagram system requires proper component selection, appropriate wire gauging, and correct connection methods. Installation follows standard electrical practices: de-energize before work, use appropriate protection devices, ensure reliable ground connections, and test all circuits before operation. Proper wire gauge selection prevents voltage drop and overheating. Protection devices must match wire ampacity, not load requirements. Grounding provides safe fault current paths. Common failures result from inadequate protection, poor connections, or undersized conductors. Professional installation includes measuring run distances, selecting color-coded wires, and verifying operation under full load. Component quality matters—cheap connectors cause intermittent failures. Regular maintenance and visual inspection confirm continued safe operation. Thermal management through proper ventilation prevents overheating and extends equipment lifespan.

A common requirement is routing power from the main panel in the house out to a detached or attached garage — often called a house-to-garage wiring diagram. The circuit typically runs via a sub-panel in the garage fed by a dedicated breaker at the house panel, with separate circuits for lighting, outlets, and any large loads such as a welder or compressor. Grounding and bonding rules for a detached garage differ from attached structures because the building is a separate structure. Map out your house-to-garage run free in the browser-based editor at circuitdiagrammaker.com — no download needed.

How to wire garage wiring diagram

Review the complete wiring diagram and gather all required components matching your application and local codes.
Prepare wiring: measure lengths, strip insulation carefully, and prepare terminal connections with appropriate crimpers.
Install components securely with proper orientation and adequate ventilation clearance.
Make connections following the diagram exactly, using color-coded wires and rated terminals.
Test and verify: confirm continuity, polarity, and voltage; operate under load and verify all functions work.

Frequently asked questions

What are the key safety rules for electrical installation?

Always de-energize circuits before working. Use lockout/tagout procedures. Wear insulated tools and PPE. Test for voltage presence before touching. Follow manufacturer specs and local codes. Never work alone on high-voltage systems.

How do I determine proper wire gauge?

Wire gauge depends on circuit current and run length. Higher current requires thicker wire. Use ampacity tables from NEC codes. For runs over 100 feet, increase gauge by one or two steps to compensate for voltage drop.

What fuse or breaker rating should I use?

Breaker rating must match the circuit wire gauge, never the load. Undersized breakers cause nuisance trips; oversized creates fire hazards. Always follow application manual specifications exactly.

Why is grounding so critical?

Grounding provides safe return paths for fault currents, allowing protection devices to detect shorts quickly. It prevents dangerous voltages on exposed metal and reduces electrical noise. Never compromise grounding.

What tools do I need?

Wire strippers, crimpers, multimeter, screwdrivers, insulated pliers, and torque wrenches for high-current connections. Always use quality, insulated tools for safety.

How do I draw a house to garage wiring diagram?

A house-to-garage wiring diagram shows a feeder cable (commonly 60 A, 240 V) running from a dedicated double-pole breaker at the house main panel to a sub-panel in the garage. From the garage sub-panel, branch circuits serve lighting, general-purpose outlets, and any dedicated appliance circuits. In a detached garage, the grounding electrode system must be established at the garage sub-panel and a grounding electrode conductor connected to a ground rod; a separate neutral and ground wire are required in the feeder (four-wire feed). You can draft the full layout free online at circuitdiagrammaker.com using standard IEC or NEMA symbols.
