Single Phase Air Compressor Electrical Diagram

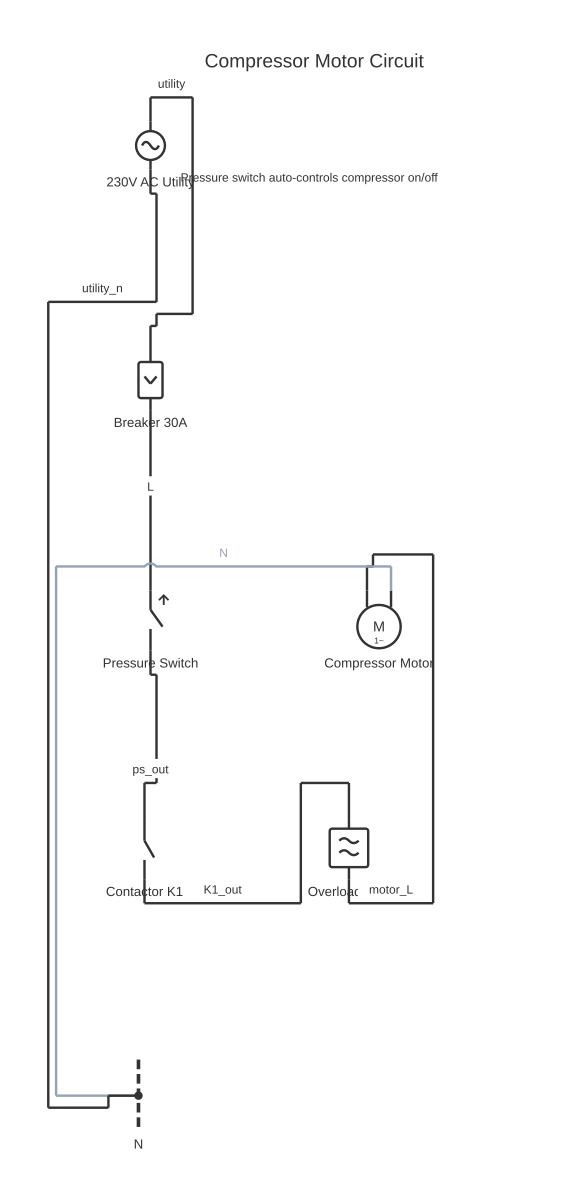

Single Phase Air Compressor Wiring Diagram — circuit diagram showing component connectionsBreaker 30APressure SwitchContactor K1Overload OL1M1~Compressor Motor230V AC UtilityCompressor Motor CircuitPressure switch auto-controls compressor on/off
Single Phase Air Compressor Electrical Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable single phase air compressor wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A single-phase air compressor wiring diagram shows how to safely connect a compressor motor to household or shop electrical power. The diagram includes motor controls, thermal overload protection, and proper grounding to ensure safe operation.

Single-phase air compressors use AC motors powered by standard residential or light commercial electrical service, typically 120V or 240V. The wiring diagram shows power flowing from the main breaker or outlet through a disconnect switch to the motor via a capacitor that helps start the motor. A thermal overload switch protects the motor from damage by cutting power if the motor overheats due to excessive load or insufficient cooling. The capacitor (usually 35-100 microfarads) provides the necessary phase shift to create the rotating magnetic field that turns a single-phase motor. Most compressors include a pressure switch that automatically turns the motor on when tank pressure drops below a set point and off when maximum pressure is reached, preventing wasteful continuous running. The diagram also shows the importance of proper grounding through a ground wire connected to the motor frame and electrical enclosure. Many modern compressors include a thermal reset button that must be manually reset after an overheat condition, providing added safety.

How to wire single phase air compressor wiring diagram

  1. Turn off and lock out the main power before starting any wiring work.
  2. Determine your compressor's voltage and amperage requirements from the nameplate.
  3. Install a breaker or fuse sized at 125-150% of the motor's full-load amperage.
  4. Run proper gauge wiring from the breaker to the disconnect switch, following local electrical codes.
  5. Connect the disconnect switch to the compressor motor terminals, respecting the voltage rating.
  6. Verify the capacitor is properly connected between the start and run terminals.
  7. Test the thermal overload reset button and ensure all ground connections are tight.
  8. Power on and verify the motor starts and runs smoothly under no load before operation.

Frequently asked questions

What size breaker do I need for my air compressor?

Check the compressor's nameplate for full-load amps (FLA). The breaker should be 125-150% of the FLA. A 10-amp compressor needs a 15-20 amp breaker; a 15-amp unit needs 20-25 amps.

Why does my compressor motor have a capacitor?

The capacitor creates a phase shift in the AC current, allowing a single-phase motor to generate the rotating magnetic field needed for starting and running. Without it, the motor wouldn't start.

Can I use a household outlet for my compressor?

Small compressors (under 1 HP) may work on household 120V outlets, but larger units need dedicated 240V circuits. Check your compressor's manual for voltage and amperage requirements.

What does the thermal overload switch do?

The thermal overload monitor detects excess heat in the motor winding and automatically disconnects power to prevent motor damage from overheating. It typically requires manual reset.

Should I install a disconnect switch for my compressor?

Yes, electrical code typically requires a disconnect switch within sight of stationary motors for safety and maintenance. This allows safe power isolation before servicing.
