Complete Factory Stereo Wiring Guides and Diagrams

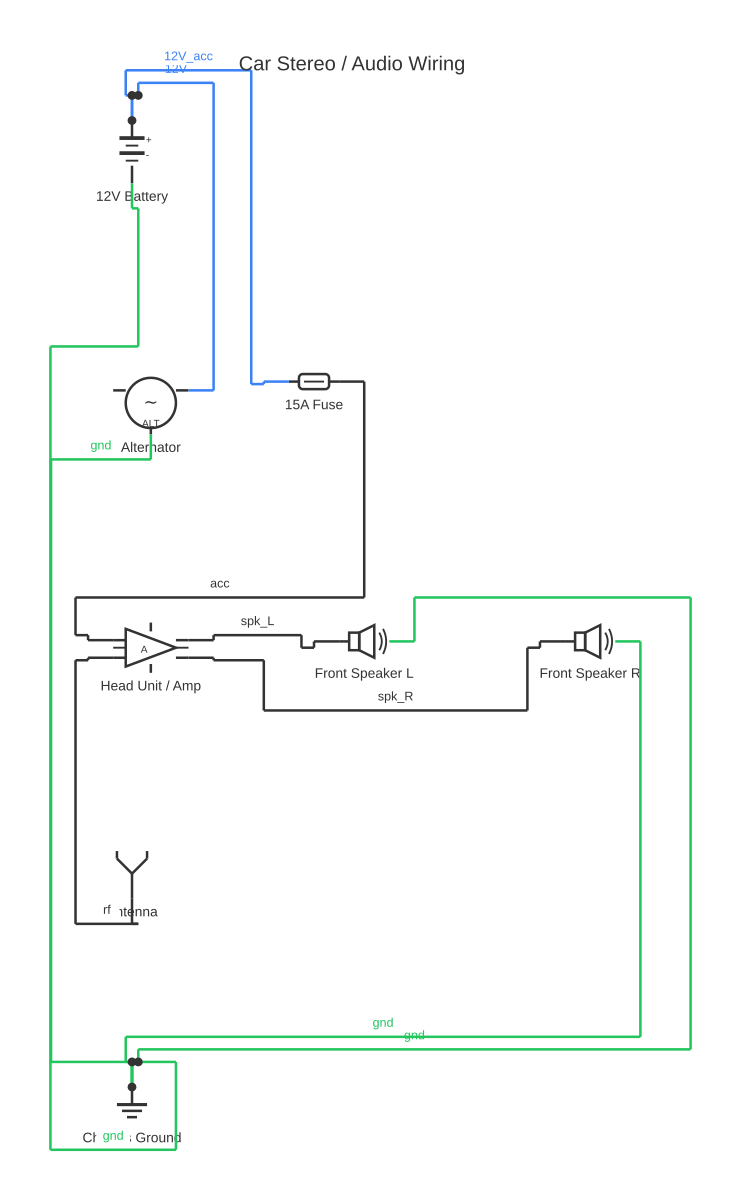

This is a free printable factory stereo wiring diagrams: download the diagram as SVG or open it and print to paper or PDF.
Factory stereo systems integrate multiple audio channels with specialized connectors and power requirements. This guide provides detailed wiring diagrams and installation procedures for various OEM audio systems.
Factory stereo systems in modern vehicles feature sophisticated audio engineering with multiple amplifier stages, crossovers, and signal processors integrated into a single head unit. Understanding the factory stereo wiring architecture is essential for successful aftermarket upgrades or repairs. Most factory systems utilize a standard 12-volt DC power supply with separate switched and constant circuits to maintain memory functions. The audio signal path typically includes radio tuner inputs, CD/auxiliary inputs, and microphone circuits for hands-free operation. Speaker connections follow industry-standard impedance ratings, typically 4 ohms for full-range drivers. Factory systems often include integrated amplification stages requiring proper power distribution and ground connections. Signal routing through crossover networks ensures optimal frequency separation between tweeter, midrange, and woofer drivers. Understanding color-coded wiring harnesses and connector pin assignments prevents costly installation errors. Ground loop elimination techniques protect audio quality by ensuring proper potential equalization throughout the system. Factory radio removal typically requires specialized tools to prevent dashboard damage. Modern factory stereos integrate with vehicle diagnostics and climate control systems, requiring careful preservation of data bus connections during upgrades.
How to wire factory stereo wiring diagrams
- Disconnect the negative battery terminal and wait 5 minutes for system discharge
- Locate the factory stereo wiring harness behind the dashboard or in the engine bay
- Document all wire colors and connections using photographs before disconnection
- Test all wiring with a multimeter to verify power, ground, and signal voltages
- Reconnect wiring following original configuration and test all functions
- Verify audio output on all channels and check integration with vehicle systems
Frequently asked questions
What gauge wire should I use for factory stereo installation?
Use 18 AWG for speaker connections and 10 AWG minimum for main power feeds. Always match gauge to current requirements and follow manufacturer specifications.
How do I identify factory stereo wiring colors?
Most factory systems use standardized color codes: red for switched 12V, black for ground, yellow for constant 12V, and blue for remote turn-on.
What is the proper ground connection procedure?
Ground to vehicle chassis using star-point methodology, ensuring bare metal contact and corrosion-free connections for reliable operation.
Can I upgrade factory speakers without changing the head unit?
Yes, but verify impedance matching and amplifier output ratings to prevent overload conditions and system damage.
What causes factory stereo system failures?
Common causes include corroded connections, blown fuses due to improper installation, and inadequate power supply voltage during engine cranking.
