Geyser (Electric Water Heater) Circuit Diagram

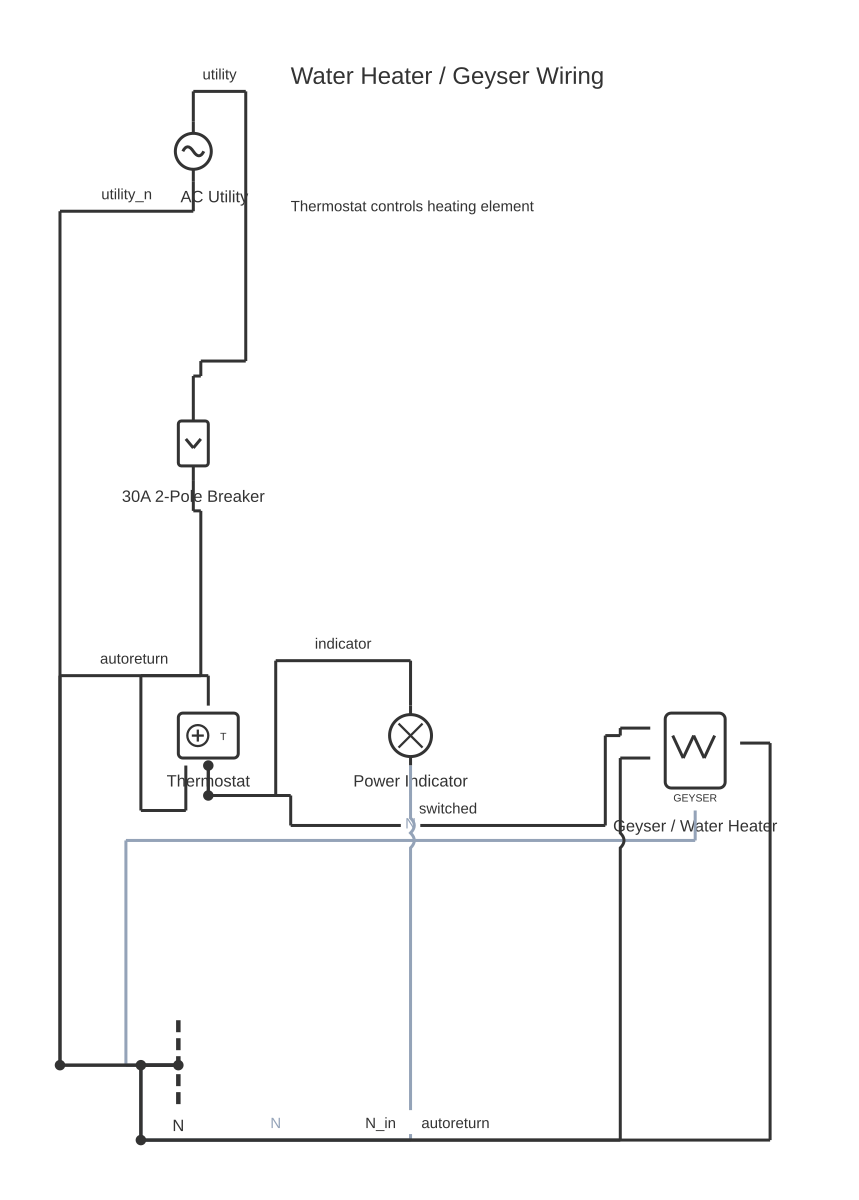

This is a free printable geyser circuit diagram: download the diagram as SVG or open it and print to paper or PDF.
A geyser circuit diagram illustrates the electrical connections in a storage tank water heater system. The circuit includes protective devices like thermostats, fuses, and safety switches that ensure the water heats efficiently and safely.
An electric geyser uses a heating element to warm water stored in an insulated tank. The circuit diagram shows how electrical current flows from the main power supply through a thermostat and into the heating element. The thermostat maintains water temperature by turning the heating element on and off. When water temperature drops below the set point, the thermostat closes, allowing current to flow through the heating element. As water heats, the temperature rises, and when it reaches the set point, the thermostat opens, cutting power to the heating element. A fuse or circuit breaker in the circuit protects against overcurrent conditions that could cause fire or equipment damage. The circuit also includes a pressure relief valve that prevents excess pressure buildup inside the tank. Many geysers have a timer switch that limits operation to specific hours, reducing energy consumption. Some advanced models include an overheat protection switch that cuts power if water temperature exceeds a safe limit.
How to wire geyser circuit diagram
- Turn off the main power supply before working on the geyser circuit.
- Inspect all electrical connections for signs of corrosion, loose wires, or damage.
- Test the thermostat by checking if it responds correctly to temperature changes.
- Verify that the fuse or circuit breaker is the correct amperage for your geyser model.
- Check the pressure relief valve by pointing it downward and slowly testing the handle.
- Examine the heating element for any visible corrosion or mineral encrustation.
- Restore power and verify that the geyser heats water to the set temperature within expected time.
Frequently asked questions
What does a geyser thermostat do?
The thermostat is a temperature-sensing device that automatically controls the heating element. It switches the heating element on when water cools below the set temperature and off when the target temperature is reached.
How large should the fuse or breaker be for a geyser?
The fuse or breaker size depends on your geyser's power rating. A 2000W geyser on 240V requires a 10-12A breaker, while a 3000W unit needs 15-16A. Always consult the manufacturer's specifications.
Why does my geyser keep tripping the breaker?
Common causes include an undersized breaker, a fault in the heating element causing high current draw, water leaking on electrical connections, or excess mineral buildup increasing resistance.
Can I install a geyser circuit myself?
Geyser installation should be done by a licensed electrician to ensure compliance with electrical codes and safety standards. Improper installation can result in electric shock or fire hazards.
What's the purpose of the pressure relief valve?
The pressure relief valve prevents dangerous pressure buildup in the closed tank. If pressure exceeds safe levels, it opens automatically to release excess water and pressure, protecting the tank from rupture.
